TONIC 23

Modeste réalisation d'un bon architecte (Harlé), dans la foulée du Fantasia.

Superbes volumes et bon marcheur pour un voilier 'transportable-occasionel'.

Dimensions

Length Beam Length overall Length floatage Beam floatage Beam at harbour Beam on road Add a new line

6.90 m
22' 8"

2.50 m
8' 2"

7.30 m
23' 11"

6.20 m
20' 4"

2.18 m
7' 2"

2.50 m
8' 2"

2.50 m
8' 2"

 Modify the line

Keels

Keel type Twin keels Displacement Total ballast Fixed ballast Mobile ballast Liquid ballast Sailing draft Minimal draft Add a new line


Fixed keel



1 300 kg
2866 lb

450 kg
992 lb







1.12 m
3' 8"

1.12 m
3' 8"

 Modify the line


keel +
centerboard



1 330 kg
2932 lb

480 kg
1058 lb







1.38 m
4' 6"

0.70 m
2' 4"

 Modify the line

Sails

Form Area Main sail Jib Self tack jib Spi Spi type Add a new line


Marconi



14.60 m²









 Modify the line

Mast

Configuration Air space Mast length Mast material Self raise mast Add a new line


Sloop





Alu



 Modify the line

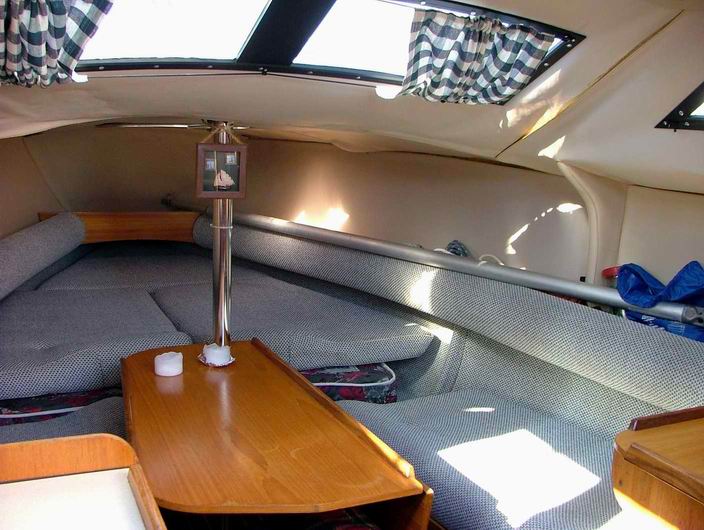

Cabin

Cabin type Cabin berths Maxi berths Toilet number Headroom Fore cabin headroom Aft cabin headroom Toilet headroom Add a new line


Studio

2

4

1

1.77 m
5' 10"

1.61 m
5' 3"



1.62 m
5' 4"

 Modify the line

Construction

Hull material Existence Start production End production Number build Number build year Price new (euro) Price year Add a new line


Polyester monolit.

Second-hand production

1987

1995

1100







 Modify the line

Homologation / Capacity

Approval certificate Max persons onboard Max load Buoyancy Water tank Petrol tank Engine power In-board motor Add a new line

3

5





20 l



8 HP



 Modify the line

Shipyard Add a new line

Jeanneau Modify the line

Architect Add a new line

Harlé Modify the line

Designer Add a new line

Useful links Add a new line

Boats linked Add a new line Click here to have explanations

Image gallery

See more images...

Comments

Gilbert

1 on Nov. 19 2008

à essayer

 Ce petit bateau donne réellement envi de l' essayer et de partir quelques jours en méditerranée avec... qui en possèderai un en languedoc/roussillon?
